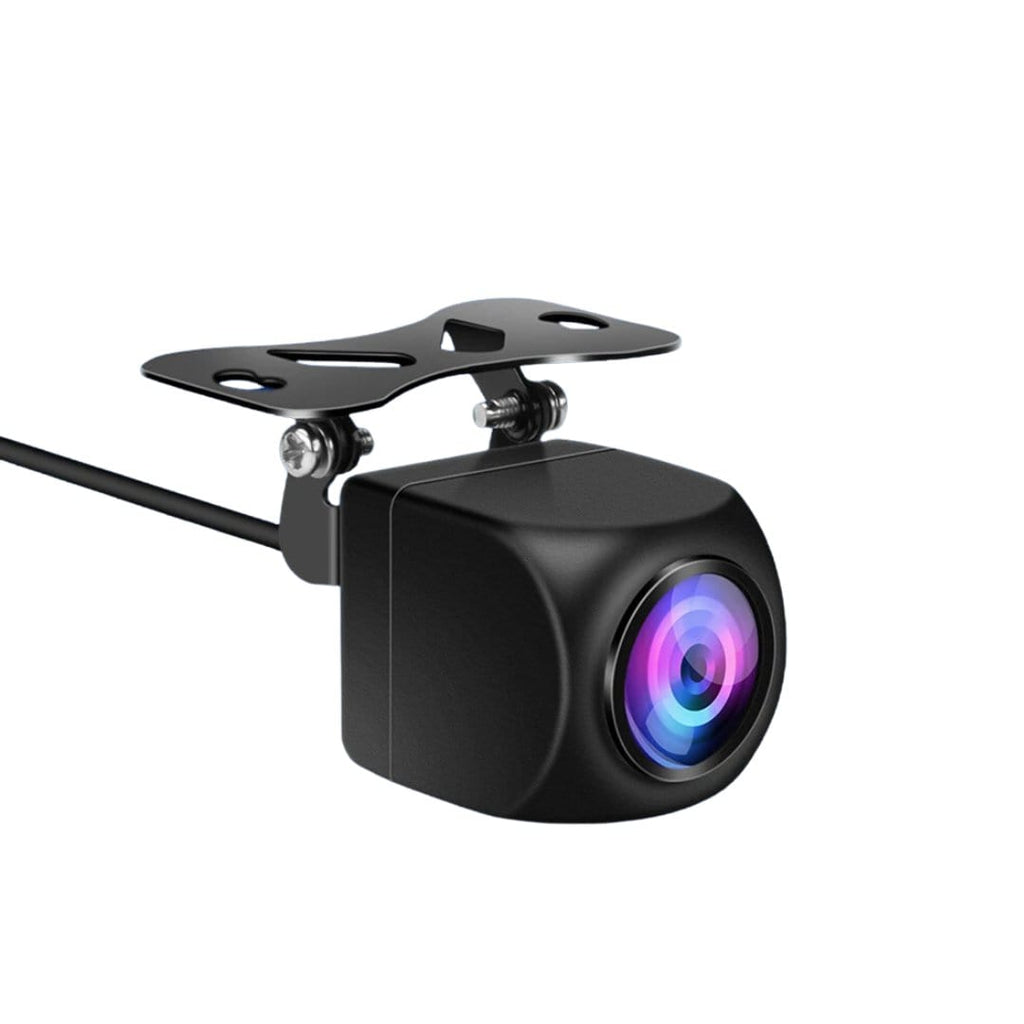

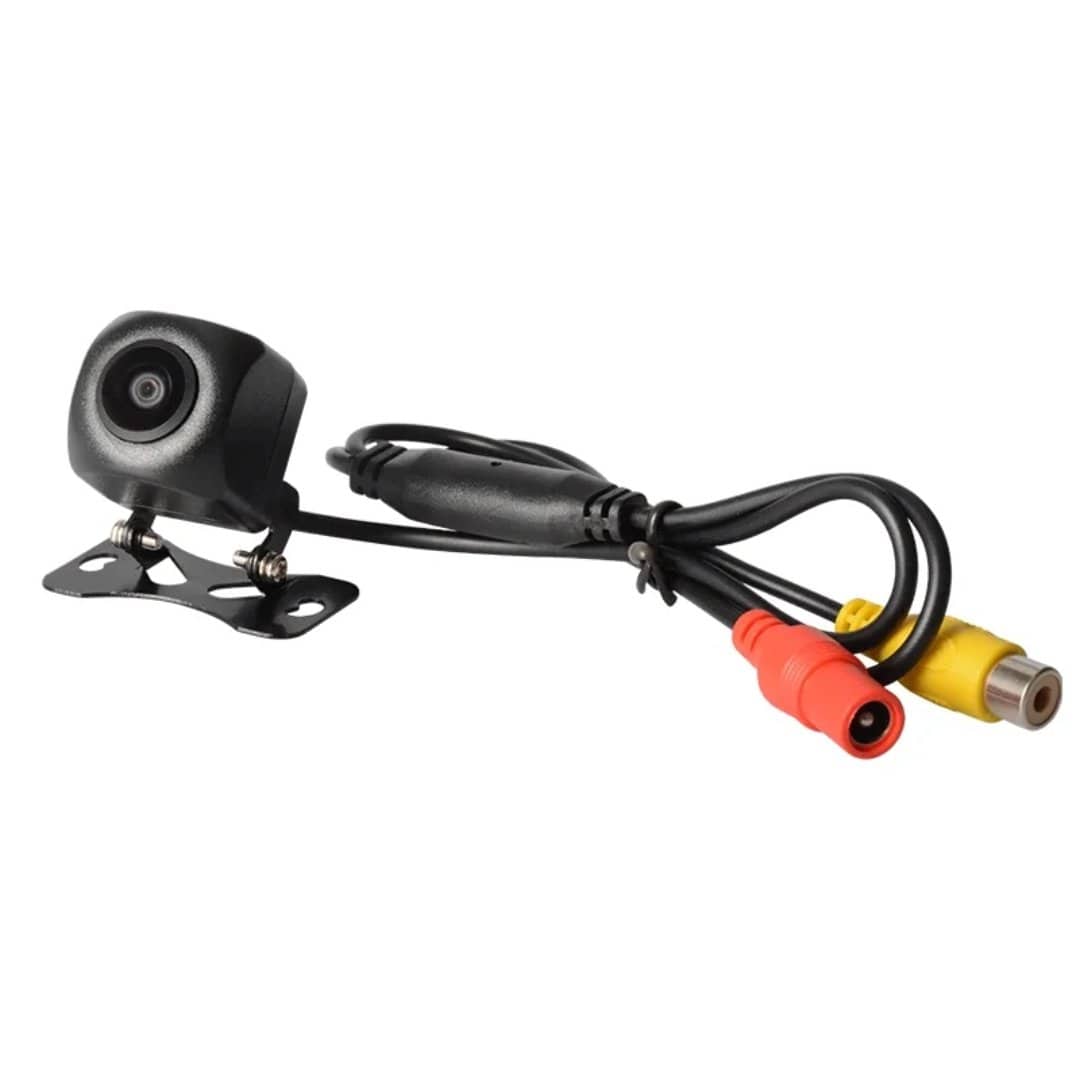

MountGo HD Reverse Backup Camera

Connection Type: Wired, plug-and-play RCA
Cable Length: 8m

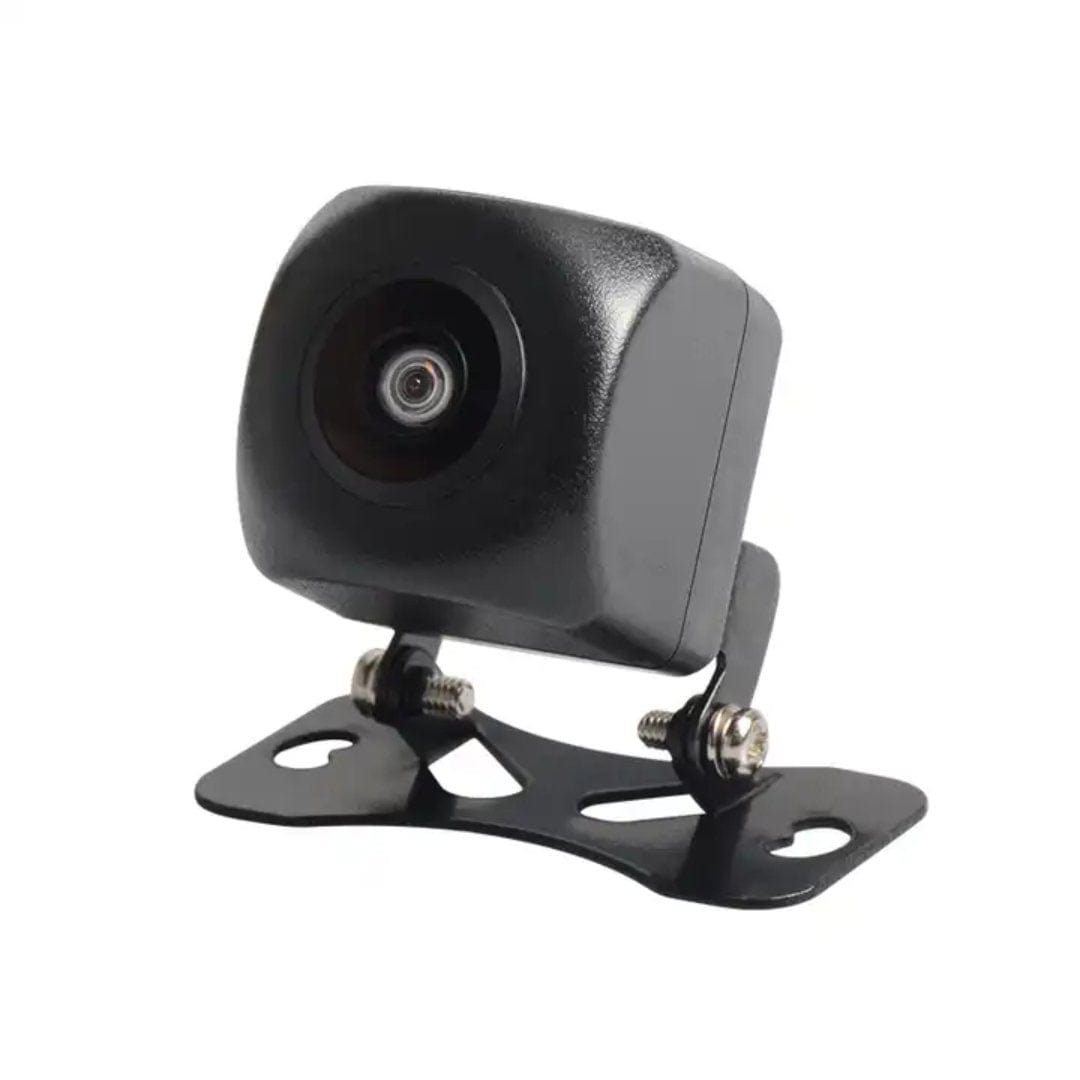

Camera Mounting Style: Screw-on butterfly style
Viewing Angle: 170° horizontal
Tilt: 90°
Gridlines: Yes (static driving track lines)
Reverse Triggered: Yes (automatic on/off when in reverse)

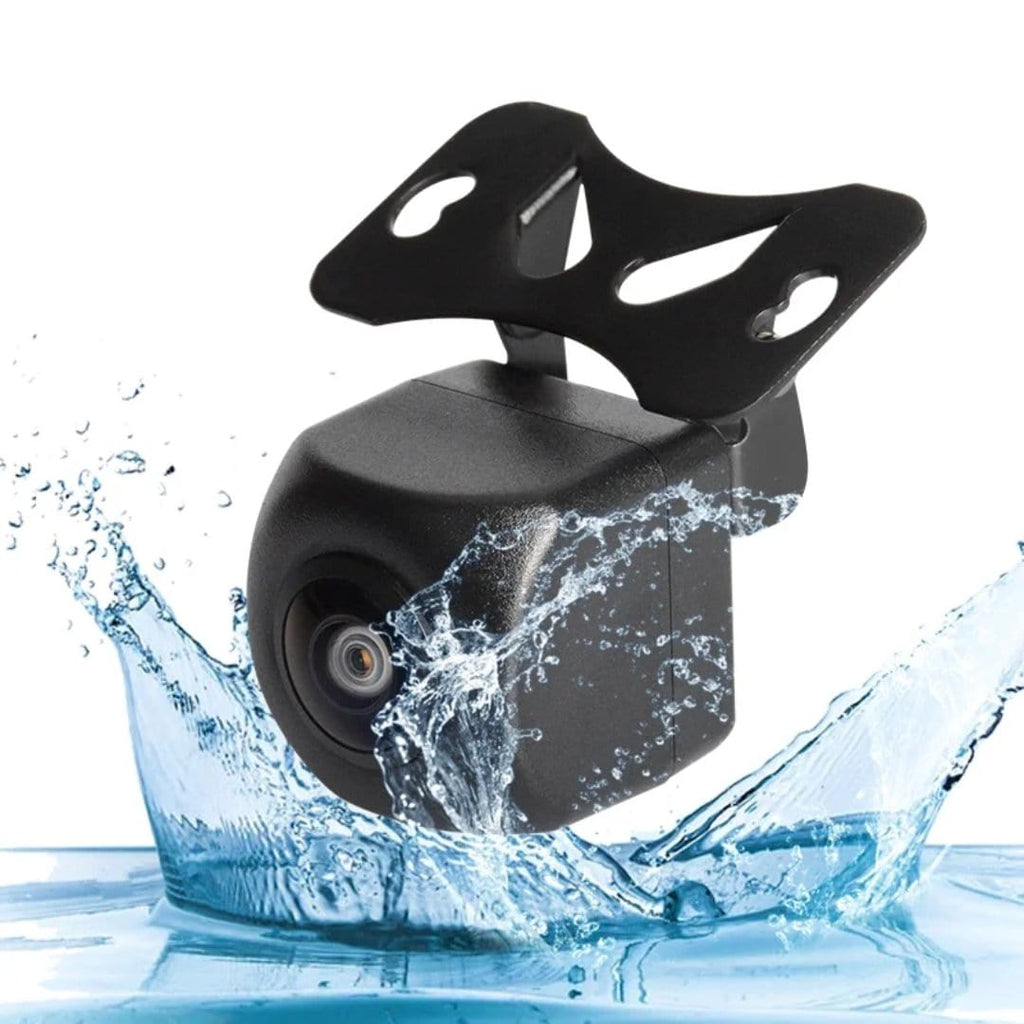

Waterproof & Dustproof: Yes (IP68)
Voltage Compatibility: 12V
Colour: Black

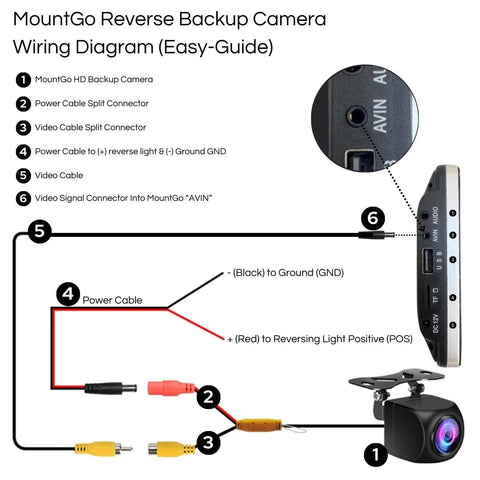

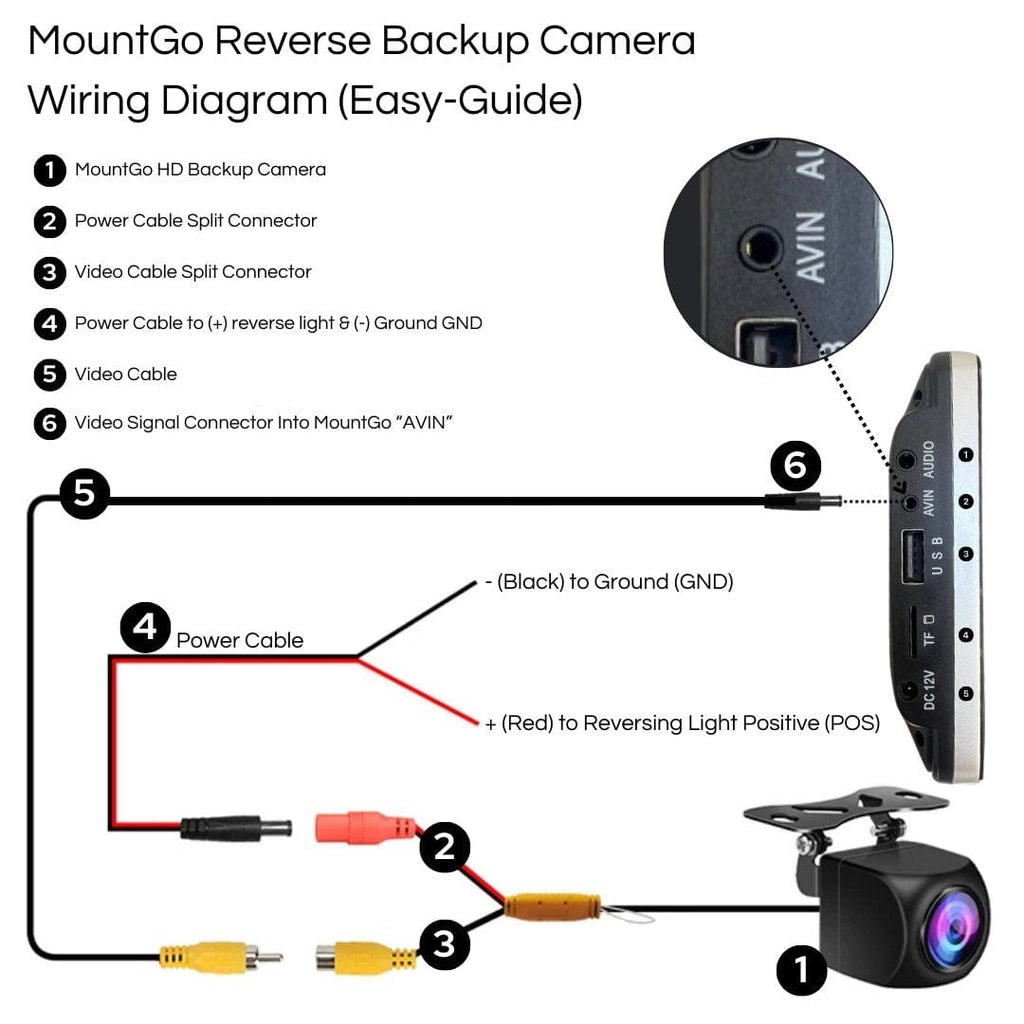

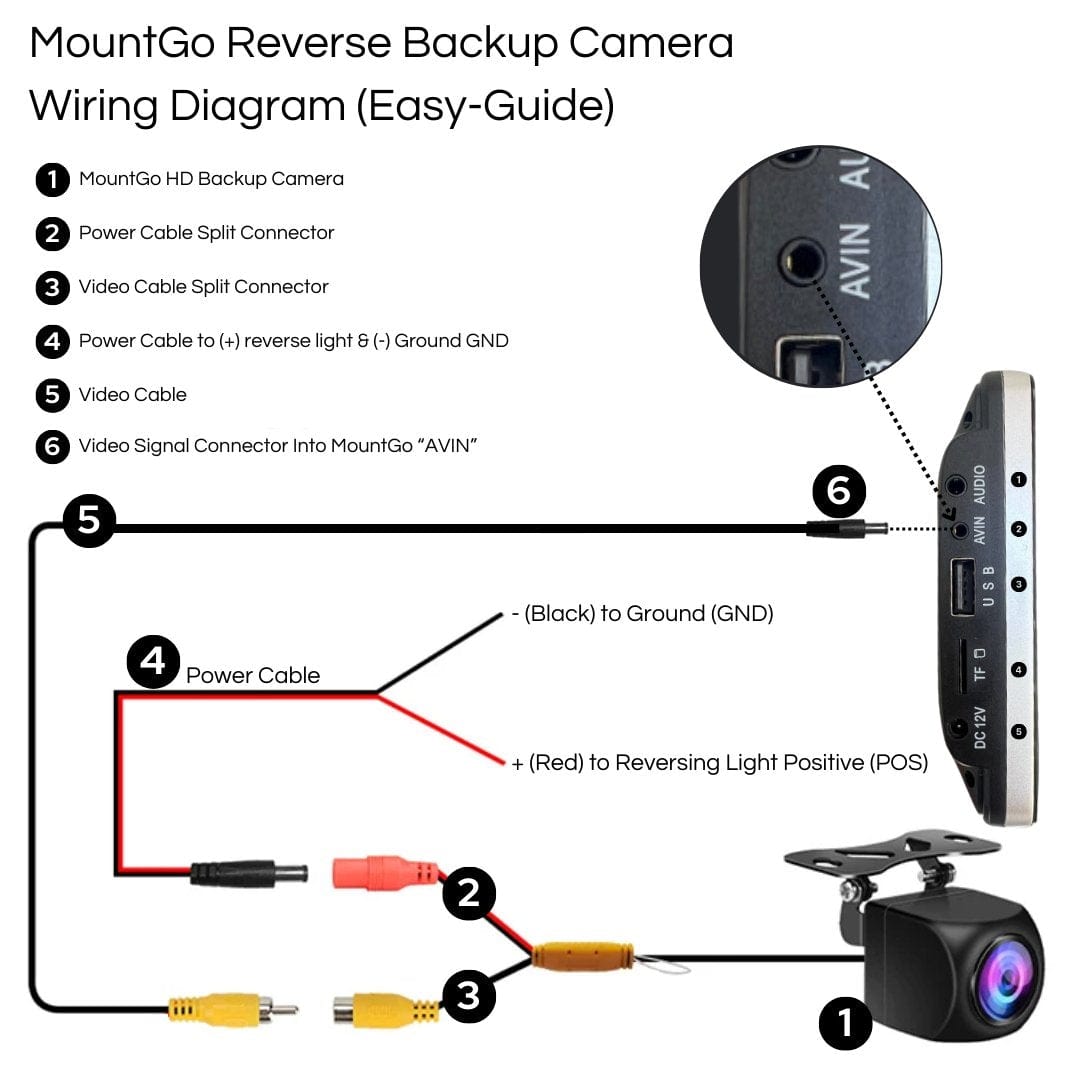

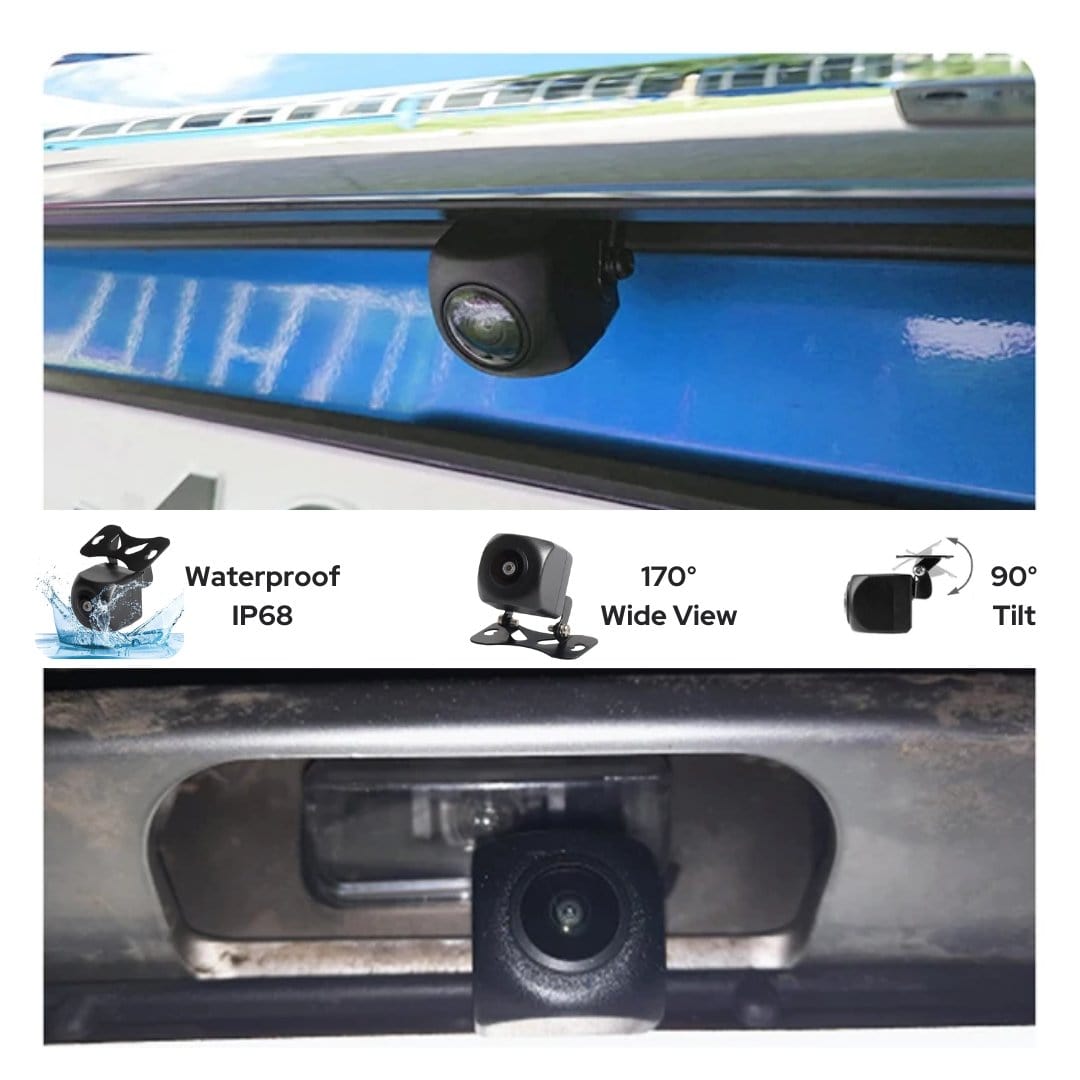

1. Mount the camera at the rear of your vehicle using the screw-on butterfly bracket and angle it with the 90° tilt
2. Connect the red power wire to your reversing light positive and the black wire to ground
3. Run the 8m RCA video cable from the camera to the front of your vehicle
4. Plug the video signal connector into the AVIN port on your MountGo Car Screen
5. Shift into reverse and the camera switches on automatically, showing the 170° view with track lines

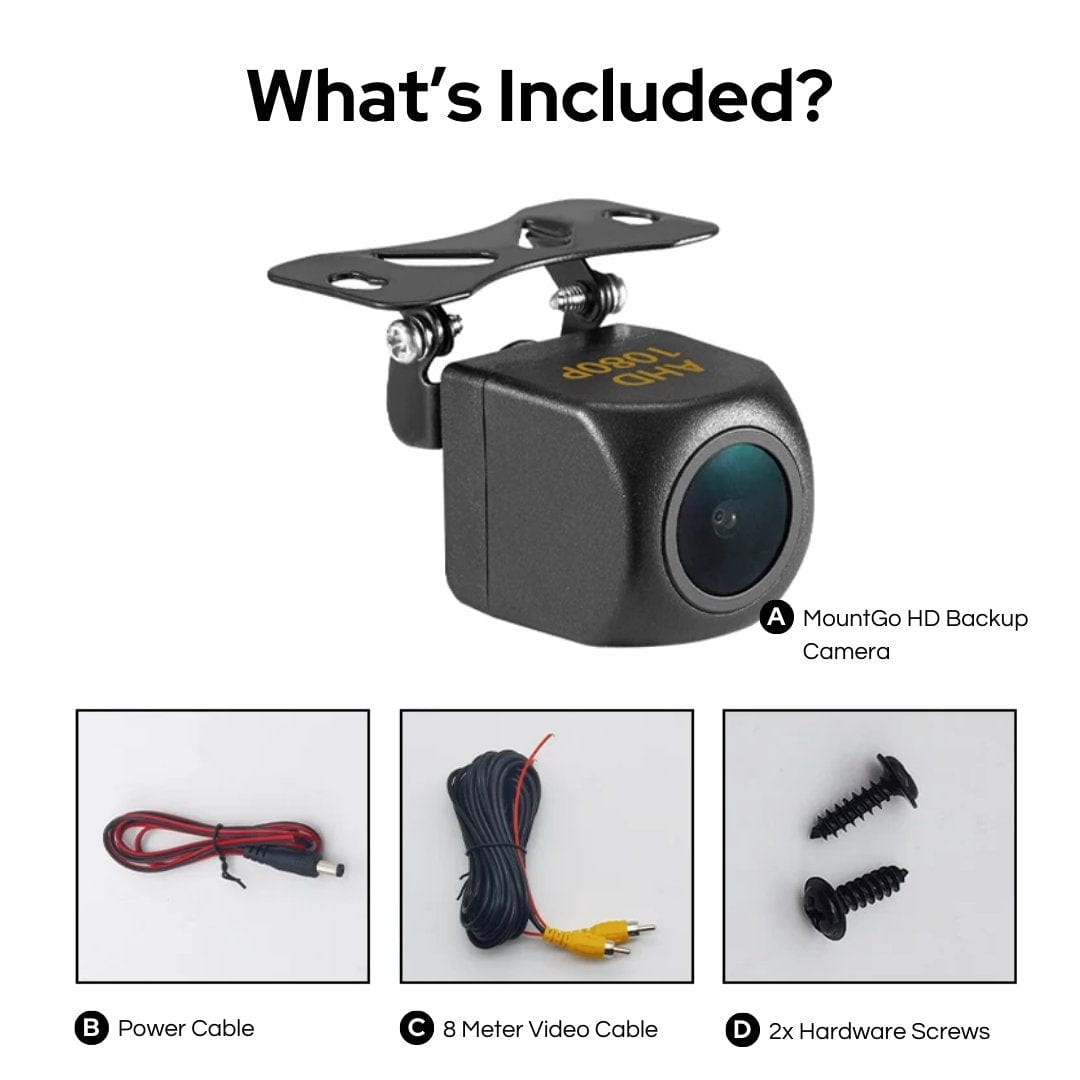

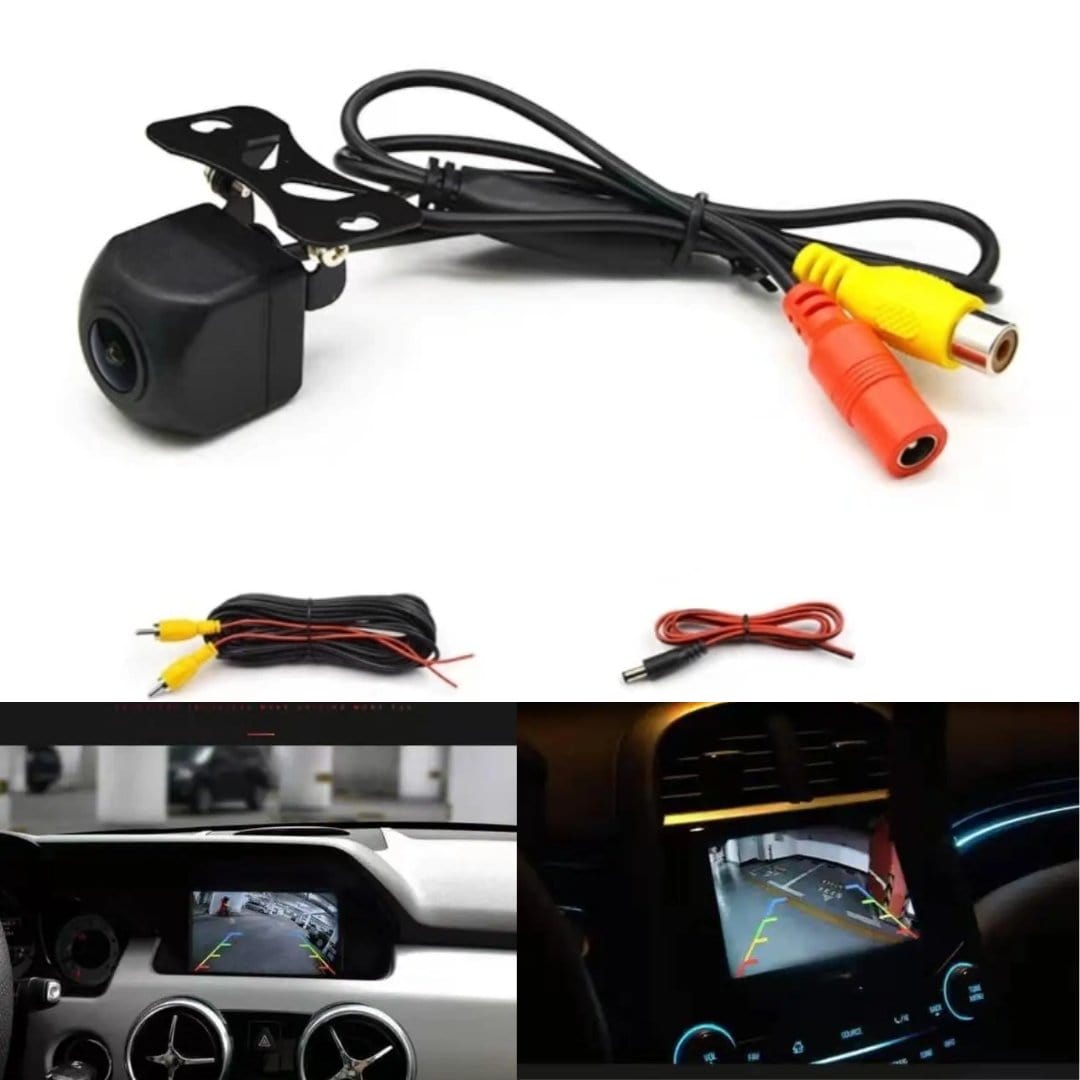

✓ 1 x MountGo HD Reverse Backup Camera
✓ 8m RCA video cable
✓ Power cable
✓ User instructions

Q: Does this include the MountGo Car Screen?
A: No, this listing is for the HD camera only. It's compatible with the MountGo Car Screen, which is sold separately.

Q: Will it fit my vehicle?
A: The camera runs on 12V and comes with 8 metres of RCA cabling, which gives you enough flexibility to install it in nearly any 12V vehicle.

Q: How does the camera know when I'm reversing?
A: The power cable connects to your reversing light, so the camera switches on automatically when you shift into reverse and turns off when you shift out of it.

Q: Can it handle rain and dust?
A: Yes. It has an IP68 rating for water and dust resistance and is built for harsh Australian and New Zealand conditions.

Q: Is it hard to install?
A: No. It uses plug-and-play RCA connections and a screw-on butterfly mount, and it comes with user-friendly instructions and a wiring diagram.
